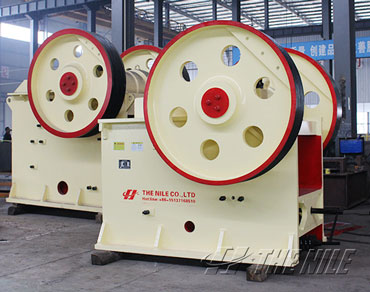

Jaw crusher
Factory direct sales:Yes
Delivery method:Sea/land
Brief Introduction:The scope of application is wide. Jaw crusher is widely used in mine industry, smelting, building materials, roads, railways, water industry, chemical industry, etc. and is especially suitbale for a stationary crushing production line and a mobile crushing station.
Hotline +8613607653853
-
Introduction -
Technical Data
Introduction
Product features: high crushing ratio, high efficiency, large amount of processing, low operating costs, convenient adjustment, economical use.
There are important improvements in the structural of components, regulation and so on. It’s different from the traditional jaw crusher.
There are important improvements in the structural of components, regulation and so on. It’s different from the traditional jaw crusher.

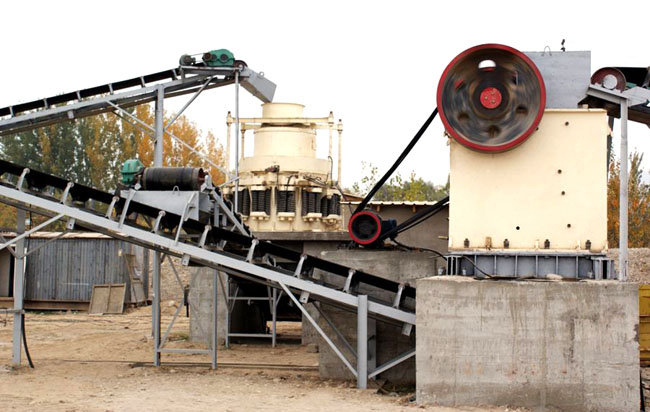

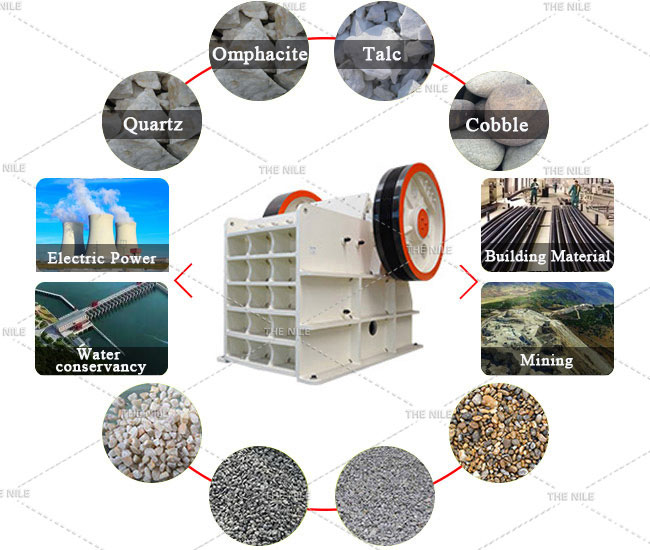

The scope of application is wide. This jaw crusher is widely used in mine industry, smelting, building materials, roads, railways, water industry, chemical industry, etc. and is especially suitable for a stationary crushing production line and a mobile crushing station.
Technical Data
| Model | Feeding Opening Size (mm) | Max feed size （мм） | Discharging range （мм） | Capacity （т / h） | Power (кw) | Weight (t) | Dimensions (mm) (LxWxH) |
| PE-150×250 | 150×250 | 120 | 10-40 | 1-4 | 5.5 | 1.1 | 880×750×940 |
| PE-150×750 | 150×750 | 120 | 10-40 | 10-20 | 15 | 2.2 | 1260×1400×900 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 3 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980×2080×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 90-180 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 80-150 | 130-330 | 110 | 29.8 | 2710×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 80-150 | 230-390 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110-132 | 58 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 110-160 | 69 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 4200×3300×3500 |
| PEX250×750 | 250×750 | 200 | 15-60 | 13-35 | 30 | 6.5 | 1380×1750×1540 |
| PEX250×1000 | 250×1000 | 200 | 15-60 | 16-52 | 37 | 7 | 1560×1950×1390 |
| PEX250×1200 | 250×1200 | 200 | 15-60 | 20-60 | 45 | 9.7 | 2140×2096×1500 |
| PEX300×1300 | 300×1300 | 240 | 20-90 | 20-100 | 55 | 15.6 | 2720×2210×1600 |
