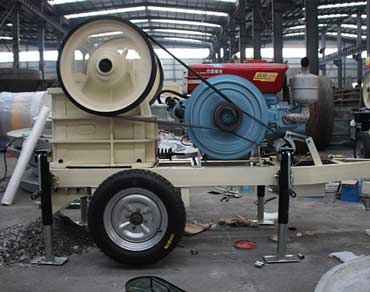

Small mobile diesel engine jaw crusher-Crushing Equipment-The Nile Machinery Co.,Ltd-The Nile Machinery Co.,Ltd

Introduction

Small Mobile Diesel Engine Jaw Crusher Working Principle

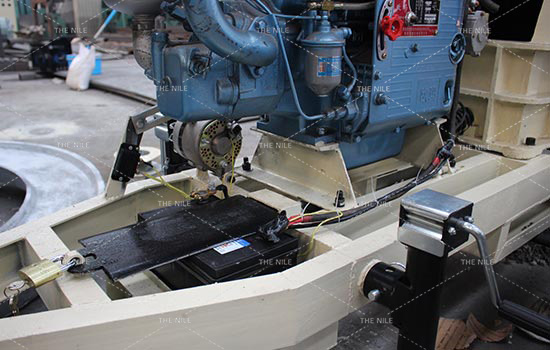

Diesel Engine jaw crusher is powered by diesel engine, then belt pully will be driven, transmit to fixed and movable jaw, when the angle between fixed and movable jaw becomes smaller, stones will be crushed.

Technical Data

model	Input Size （mm）	Output Size （mm）	Discharging Range （mm）	Capacity （t/h）	Power （kw）	Weight （t）	Dimension （mm）（LxWxH）
PE-150×250	150×250	120	10-40	1-4	5.5	1.1	880×750×940
PE-150×750	150×750	120	10-40	10-20	15	2.2	1260×1400×900
PE-250×400	250×400	210	20-60	5-20	15	3	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	55	12	1980×2080×1870
