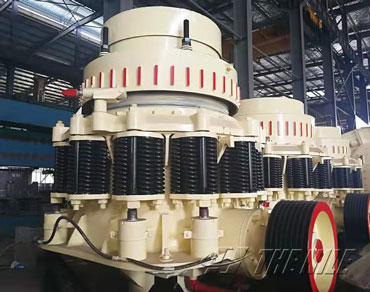

Symons cone crusher / Combined cone crusher

Symons cone crusher / Combined cone crusher

Service Online

Factory direct sales:Yes

Delivery method:Sea/land

Brief Introduction:Product features : (large crushing force, high efficiency, high throughput, low operating cost) Cone crushers are widely used in industries such as building materials industry, road building industry, chemical industry and silicate industry

Hotline +8613607653853

Introduction


Product features:
(large crushing force, high efficiency, high throughput, low operating cost)
Cone crushers are widely used in industries such as building materials industry, road building industry, chemical industry and silicate industry. They are suitable for various ores and rocks with medium and above hardness.

This machine has the characteristics of large crushing ratio, high efficiency, large amount of processing, low operating cost, and easy adjustment. The machine seal is sealed with grease, which avoids the disadvantages of water supply and drainage systems that are easy to be blocked and water-oil miscibility. The spring insurance system is an overload protection device that can make foreign materials and iron blocks pass through the crushing chamber without damaging the crusher.

Technical Data

Type Model Cavity Type Diameter of cone (mm) Adjusting Range of Discharge
Opening (mm)		 Recommend feeding size when
the minimum output size (mm)		 Max feed
size (mm)		 Capacity (t/h) Main
Motor
Power (kw)		 Weight (kg) Overall
Dimension
(L×W×H) (mm)
2’FT PSGB-0607 Standard fine     600        6-38 70 60 16-50 22 4500 2195×1158×1651
PSGB- 0609 Standard medium 10-38
 		 95 80 18-65
PSGB- 0611 Standard coarse 13-38 110 90 22-70
PSGD- 0603 Short head fine 3-13 35 30 9-35
PSGD- 0605 Short head coarse 5-16 50 40 22-70
3’FT PSGB- 0910
Standard fine		 900 9-22 102 85 45-91 75 9980 2656×1636×2241
PSGB- 0917 Standard coarse 12-38 175 150 59-163
PSGB- 0918 Standard super coarse 28-38 178 150 118-163
PSGD-0904 Short head fine 3-13 41 35 27-90 10530
PSGD-0906  Short head medium 3-16 76 65 27-100
PSGD-0907 Short head coarse 6-19 102 85 59-129
4.25’FT PSGB- 1313 Standard fine 1295 13-31 137 115 109-181
22460		 2983×1866×3156
PSGB- 1321 Standard medium 16-38 210 178 132-253
PSGB- 1324 Standard coarse 19-51 241 205 172-349
PSGB- 1325 Standard super coarse 25-51 259 220 236-358
PSGB- 1306 Short head fine 3-16 64 54 36-163 22590
PSGB- 1308 Short head medium 6-16 89 76 82-163
PSGB- 1310 Short head coarse 8-25 105 89 109-227
PSGB- 1313 Short head super coarse 16-25 133 113 209-236
5.5’FT PSGB- 1620 Standard fine 1676 16-38 209 178 181-327 220
43270		 3941×2954×3771
PSGB- 1624 Standard medium 22-51 241 205 258-417
PSGB- 1626 Standard coarse 25-64 269 228 299-635
PSGB- 1636 Standard super coarse 38-64 369 313 431-630
PSGD-1607 Short head fine 5-13 70 60 90-209 43870
PSGD-1608 Short head medium 6-19 89 76 136-281
PSGD-1613 short head coarse 10-25 133 113 190-336
PSGD-1614 Short head super coarse 13-25 133 113 253-336
7’FT PSGB- 2127
Standard fine		 2134 19-38 278 236 544-1034 400 86730 4613×3302×4638
PSGB- 2133 Standard medium 25-51 334 284 862-1424
PSGB- 2136 Standard coarse 31-64 369 314 1252-1941
PSGB- 2146 Standard super coarse 38-64 460 391
PSGD-2110 Short head fine 5-16 105 89 218-463 89500
PSGD-2113 Short head medium 10-19 133 113 404-580
PSGD-2117 Short head coarse 13-25 178 151 517-680
PSGD-2120 Short head super coarse 16-25 203 172 580-744
