Mobile jaw crusher station

Factory direct sales:Yes

Delivery method:Sea/land

Brief Introduction:The Nile Mobile jaw crusher station widely used in mines, coal mines, garbage and construction waste recycling, civil engineering, urban infrastructure, roads or construction sites etc. Mobile jaw crusher station is mainly composed of feeder

Hotline +8613607653853

Introduction

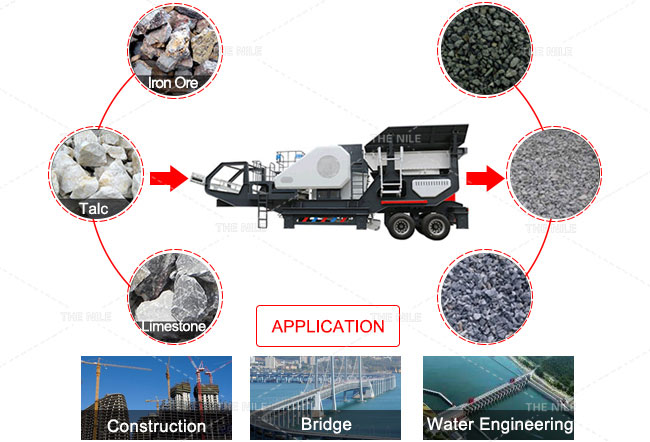

The Nile Mobile jaw crusher station widely used in mines, coal mines, garbage and construction waste recycling, civil engineering, urban infrastructure, roads or construction sites etc.

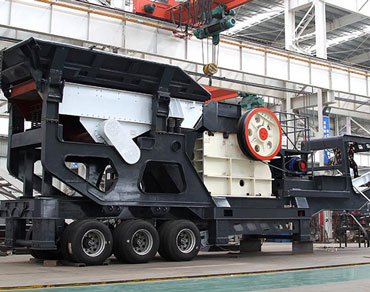

Mobile jaw crusher station is mainly composed of feeder, jaw crusher and belt conveyor. The capacity is 85-650 tons per hour.
The machine adopts the integrated group operation mode, can work separately, eliminates the complex site infrastructure and auxiliary facilities installation of the split-component, and reduces the man-hour consumption.

Technical Data

PP Mobile jaw crushing plant		PP600	PP750	PP900	PP1060	PP1200	PP1300PEX
Shipping size	Length(mm)	8600	9600	11097	13300	15800	9460
	Width(mm)	2520	2520	3759	2900	2900	2743
	Height(mm)	3770	3500	3500	4440	4500	3988
Jaw crusher	Weight (kg)	15240	22000	32270	57880	98000	25220
	Axle load(kg)	10121	14500	21380	38430	64000	14730
	Tractor weight (kg)	5118	7500	10890	19450	34000	10490
	Type	PE400*600	PE500*750	PE600*900	PE750*1060	PE900*1200	PEX300*1300
	feeding size (mm)	400*600	500*750	600*900	750*1060	900*1200	300*1300
	Adjustable discharge size (mm)	40-100	50-100	65-180	80-180	95-225	20-90
Viberating feeder	Capacity (m³/h)	10-35	25-60	30-85	70-150	100-240	10-65
	Type	GZT0724	GZT0724	GZT0932Y	ZSW490*110	ZSW600*130	GZT0724
	Capacity of bin (m³/h)	3	4	7	10	10	3
	Width of bin (mm)	2200	2500	3000	3000	3000	2200
Type of belt conveyor		B650*6	B800*7	B1000*8	B1000*11	B1200*13	B1000*7
