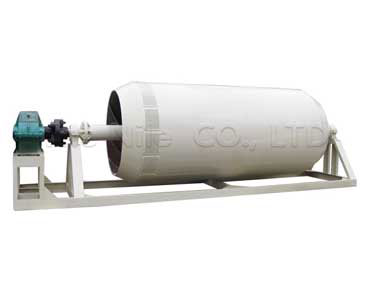

Stone Washer
Factory direct sales:Yes
Delivery method:Sea/land
Brief Introduction:Product Introduce Stone washing machine is widely used in a variety of difficult to wash large ore, the machine can be divided into cylinder type and cylinder sieve type.The latter can be divided into two grades: + 40mm and -40mm. The mater
Hotline +8613607653853
-
Introduction -
Technical Data
Introduction
Product Introduce
Stone washing machine is widely used in a variety of difficult to wash large ore, the machine can be divided into cylinder type and cylinder sieve type. The latter can be divided into two grades: + 40mm and -40mm. The material can be further scrubbed by double spiral trough washing machine. The material can be divided into two grades: + 2mm and -2mm, and the washing efficiency can reach about 98%.This combination is the most effective method for refractory ore at present.
Stone washing machine is widely used in a variety of difficult to wash large ore, the machine can be divided into cylinder type and cylinder sieve type. The latter can be divided into two grades: + 40mm and -40mm. The material can be further scrubbed by double spiral trough washing machine. The material can be divided into two grades: + 2mm and -2mm, and the washing efficiency can reach about 98%.This combination is the most effective method for refractory ore at present.
Working Principle
The cleaning cylinder body is supported by four tugboats, the motor drives the reducer, and the small and small gears drive the cleaning cylinder body to rotate at low speed. The aggregate containing mud and stone is fed into the rotary drum from the inlet, and the wear-resistant rubber liner with a certain angle is installed in the cleaned drum, which is continuously taken up and thrown off, and repeated circulation during the process of moving from the feed end to the discharging end, The aggregate is washed and rinsed by direct or reverse flushing water. The cleaned aggregate is separated and dehydrated by the end sieve of the discharging material. Waste water containing sludge flows out through the outlet or the perforated baffle at the feed end.
Technical Data
| Model | Diameter of cylinder (mm) | Length of Cylinder (mm) | Rotational speed (r/min) | Feeding Size (mm) | Power (kw) | Capacity (t/h) | Weight (t) |
Dimension (m) |
| 1542 | 1500 | 4200 | 10-13 | ≤60 | 15 | 40-60 | 6.8 | 6.5×1.75×1.8 |
| 1842 | 1800 | 4200 | 10-12 | ≤80 | 18.5 | 60-80 | 8.8 | 7.5×2.1×2.6 |
| 2042 | 2000 | 4200 | 9-11 | ≤110 | 22 | 100-150 | 10.6 | 8.8×2.2×2.9 |
